ASME SB111 C68700 Aluminum Brass Condensers Low Fin Tubes / Integral Fin Tubes

Brand Name:	Yuhong
Model Number:	ASME SB111 C68700
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Finned Tubes Type:

Low Fin Tubes / Integral Fin Tubes

Low Fin Tubes Standard:

ASME SB111

Low Fin Tubes Material:

C68700 Tube

Size And Length:

According To Clients' Requirement

Packing:

Ply-wooden Case With Iron Frame

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

Supply Ability:

1000 tons/month

Highlight:

ASME SB111 C68700 aluminum brass condenser tubes

low fin tubes for condensers

integral fin tubes aluminum brass

Product Description

ASME SB111 C68700 Aluminum Brass Condensers Low Fin Tubes / Integral Fin Tubes

Seamless copper alloy heat transfer tubes manufactured in accordance with ASME SB111 (ASTM B111), made from UNS C68700 aluminum brass, with integrally formed low fins on the outer surface.They are mainly used in condensers and heat exchangers to improve heat transfer efficiency while providing excellent resistance to seawater corrosion and dezincification.

Design Features

Fins:The fins are typically spaced apart and have a low height, which minimizes flow resistance while still providing significant surface area for heat transfer.Typically constructed from materials such as carbon steel, stainless steel, alloy or copper, providing durability and resistance to corrosion.

Detailes of ASTM B111/ASME SB111 Base Tubes

Chemical Composition (%) Aluminum Brass

Grade	Copper	Aluminum	Lead	Iron	Zinc	Arsenic
C68700	76.0-79.0	1.8-2.5	0.07	0.06max	remainder	0.02-0.06

Mechanical Properties

Grade	Standard	Tensile Strength,min	Yield Strength (0.2%Offset,min)
C68700	O61	50ksi	18ksi

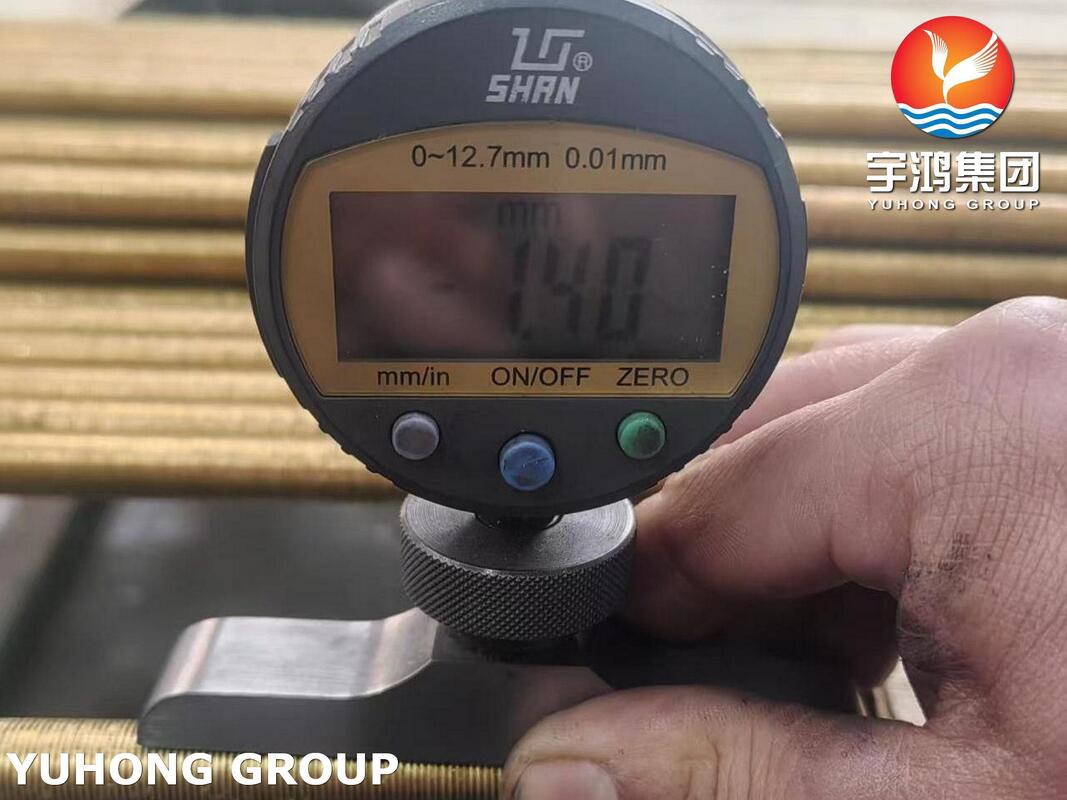

ASME SB111 C68700 Aluminum Brass Condensers Low Fin Tubes / Integral Fin Tubes 0

Application ( Not limited to the following )

Steam condensers for thermal power plants, nuclear power plants, and coastal power stations using seawater cooling.

Main engine condensers, central cooling systems, seawater coolers, and auxiliary heat exchangers for ships and offshore platforms.

Heat transfer tubes for MSF (Multi‑Stage Flash) and MED (Multi‑Effect Distillation) desalination plants.

Process condensers, overhead condensers, oil coolers, and general industrial heat exchangers.

Water‑cooled condensers and evaporators for industrial refrigeration and central air conditioning.

Specifications For Various Types Of Finned Tubes

Our finned tubes include the following types,and we can make sure that fin tubes we produced with highest quality and manufacturing standards.

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6-10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6-2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8-30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3-25	5-30	0.8-3
	H/HH type fin tube	25-63	8-30	<200	1.5-3.5
	Serrated spiral fin tube	25-219	2-7	<38.1	0.9-2.0
	Studed fin tube	25-219	8-30	5-35	φ5-20

ASME SB111 C68700 Aluminum Brass Condensers Low Fin Tubes / Integral Fin Tubes 1
