Serrated Finned Tube HF Welding ASTM A335 P9 For Power Generation Boilers

Brand Name:	Yuhong
Model Number:	Serrated Finned Tube ASTM A335 P9
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes Or Finned Tube

Finned Tube Type:

Serrated Spiral Fin Tubes

Serrated Finned Tube Standard:

ASTM A335

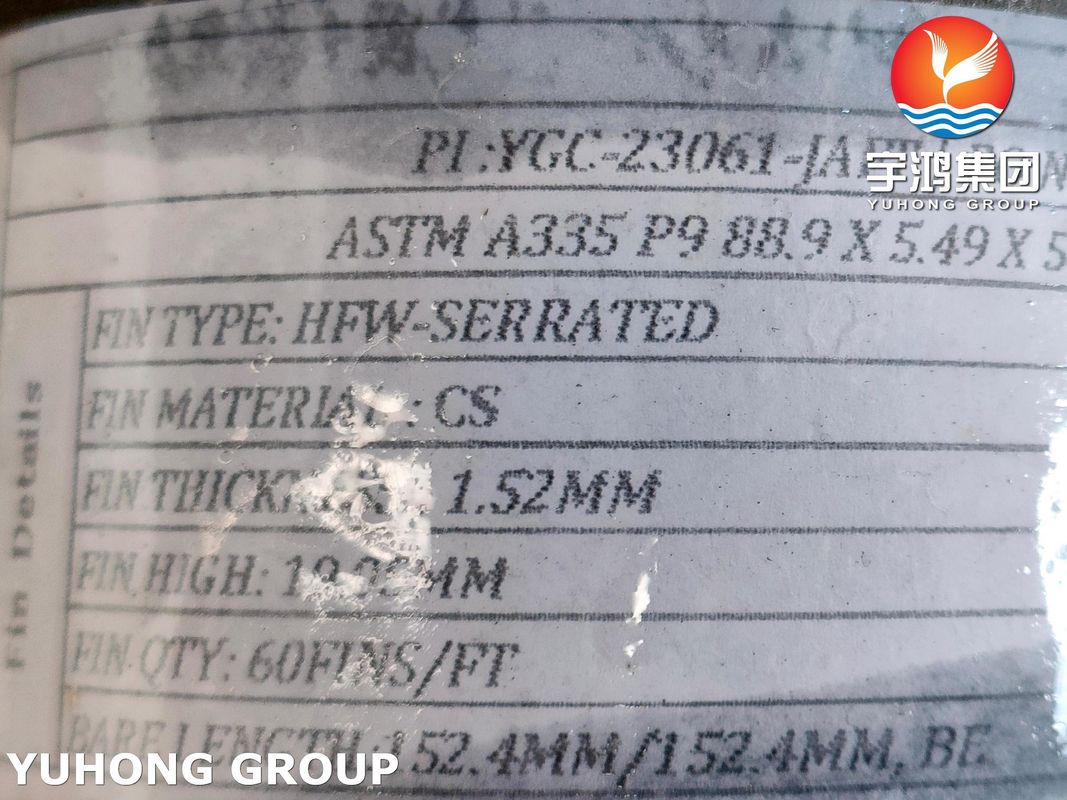

Serrated Finned Tube Material And Data:

P9 Base Tubes O.D. 88.9MM, W.T.5.49MM

Serrated Finned Tube Fin Material And Data:

CS Material, W.T. 1.52MM

Serrated Finned Tube Length:

According To Clients' Need

Serrated Finned Tube Use:

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

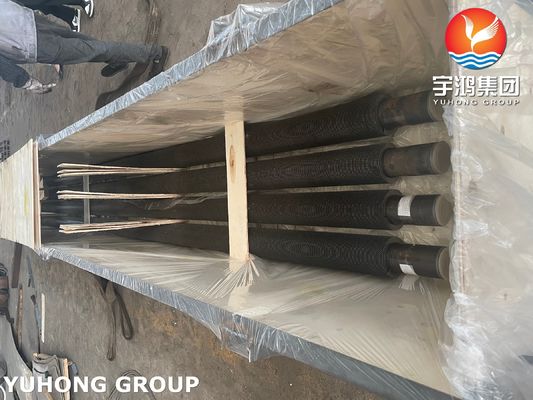

Serrated Finned Tube Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Power Generation Serrated Finned Tube

HF Welding Serrated Finned Tube

ASTMA335 P9 Serrated Finned Tube

Product Description

Serrated Finned Tube HF Welding ASTM A335 P9 For Power Generation & Boilers

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Mo	Ni	V
P9	0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.90-1.10	...	...

Mechanical Properties

Grade	Tensile Strength,min	Yield Strength (0.2%Offset,min)
P9	60ksi (415 MPa)	30ksi (205 MPa)

ASTM A335 this standard specification for seamless ferritic alloy-steel pipe for high-temperature service, is a critical material standard for fin tubes used in high-temperature and high-pressure applications, such as power plants, petrochemical refineries, and heat recovery systems.

P9 material has good oxidation & corrosion resistance and better than P11/P22. With excellent high-temperature strength (up to 600°C+) and superior creep resistance for long-term thermal cycling, P9 material is suitable for welding & fabrication (requires post-weld heat treatment).

Serrated Finned Tube HF Welding ASTM A335 P9 For Power Generation Boilers 0

Design Features Serrated Finned Tubes

Serrated Fins:The fins are serrated, increasing turbulence & heat transfer efficiency by ~20-30% vs. smooth fins and reduces ash fouling in flue gas applications.

Material:Usually carbon steel, stainless steel, alloy or copper, providing durability and resistance to corrosion.

Spiral Configuration:Enhance the heat transfer process.

Welding Process:High-FrequencyResistance Welding ensures strong metallurgical bonding.Post-Weld Heat Treatment (PWHT) required to relieve stresses.

Primary Application

Power plant superheaters

Refinery heaters & reformers

HVAC Systems

Waste heat recovery systems

Specifications For Various Types Of Finned Tubes We Can Do

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6-10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6-2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8-30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3-25	5-30	0.8-3
	H/HH type fin tube	25-63	8-30	<200	1.5-3.5
	Serrated spiral fin tube	25-219	2-7	<38.1	0.9-2.0
	Studed fin tube	25-219	8-30	5-35	φ5-20

Serrated Finned Tube HF Welding ASTM A335 P9 For Power Generation Boilers 1
