ASME B111 C70600 B111 C70600-O61 Copper Nickel Low Finned Tube For Heat Recovery Systems

Brand Name:	YUHONG
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	L/C,T/T,AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Finned Tube Type:

Low Fin Tubes / Integral Fin Tubes

Specification:

ASME B111

Application:

Power Generation And Cooling Systems For Power Generation Equipment

Material:

C70600-O61

Supply Ability:

According to Clients' requirements

Highlight:

ASME B111 Finned Tube

C70600 Copper Nickel Finned Tube

C70600-O61 Copper Nickel Finned Tube

Product Description

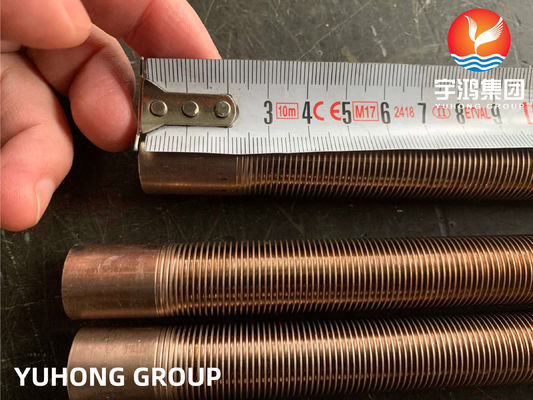

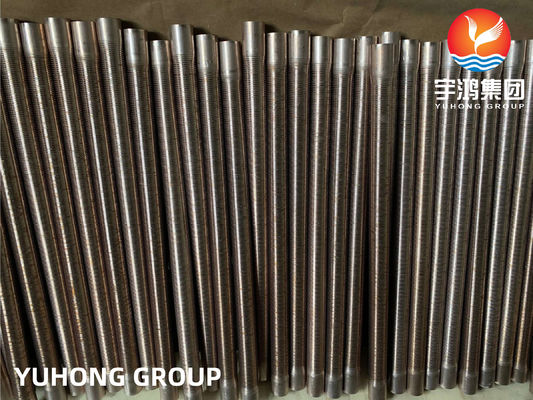

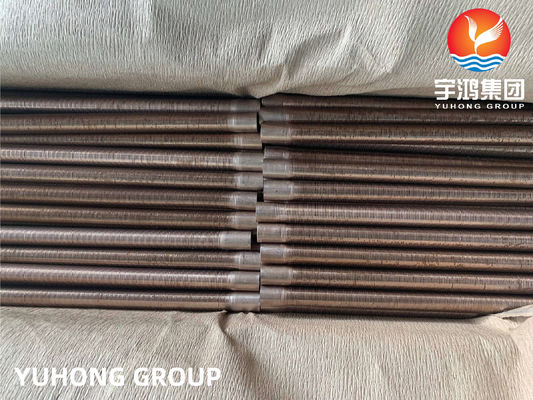

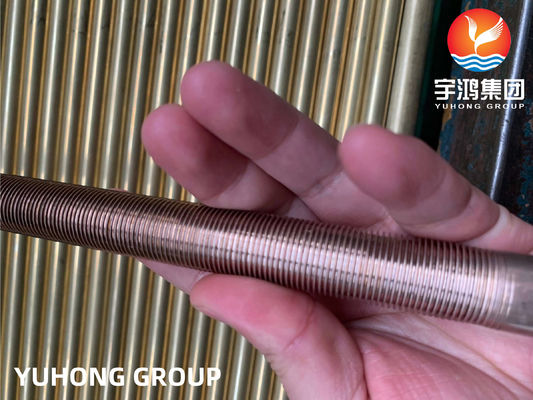

ASME B111 C70600 B111 C70600-O61 Copper Nickel Low Finned Tube

1. What is ASME B111 C70600-O61 Copper Nickel Low Finned Tube?

ASME B111 C70600-O61 Copper Nickel Low Finned Tube is the ultimate marine-grade heat transfer solution for corrosive seawater and brackish environments. Featuring a seamless 90-10 copper-nickel alloy (UNS C70600) base tube in annealed (O61) condition with integral low-profile helical fins, this monolithic design delivers exceptional biofouling resistance, erosion-corrosion immunity, and 40% higher heat transfer efficiency than bare tubes. Ideal for condensers, heat exchangers, and desalination systems operating in chlorides up to 400°C (752°F).

2. Chemical & Mechanical Properties

Chemical Composition (%)(ASME B111 C70600,%)

Element	C	Si	Mn	P	S	Cu	Ni	Fe	Zn
Content	≤0.05	≤0.10	0.05–0.50	≤0.01	≤0.005	≥88.0	9.0–11.0	0.4–1.0	≤0.50

Mechanical Properties (ASME B111 C70600-O61)

Property	Tensile Strength	Yield Strength	Elongation	Hardness	Max Service Temp.
Value	290–370 MPa	≥ 125 MPa	≥ 30%	60–90 HRB	400°C (752°F)

3. Key Applications & Competitive Advantages

· Marine Condensers: Ship engine cooling systems (resists 3+ m/s seawater velocity).

· Offshore Platforms: Seawater coolers for LNG processing.

· Desalination Plants: Brine heaters in MED/MSF units.

· Power Generation: Condenser bundles for coastal nuclear plants.

· Chemical Processing: Sulfuric acid coolers with brackish water cooling.

4. Why Choose ASME B111 C70600-O61 Copper Nickel Low Finned Tube :

A:Company Competitiveness:

Yuhong Holding Group has more than 35 years experience for steel pipe and tube , fin tube , main application for Petrochemical , Oil refinary, Furnace, heating, boiler, heat exchanger, air cooler,.., till now YUHONG brand products already exported more than 85 countries, which like UK, ITALY, SPAIN , USA, MEXICO , COLOMBIA , BRAZIL, SAUDI ARANBIA , OMAN, QATAR, U.A.E, KOREA, ...., YUHONG brand already won good reputation in the market.

B:Product Competitiveness:

· 40+ Year Lifespan: Verified in North Sea offshore installations per NORSOK M-001.
· Zero Biofouling: Cu+ ions inhibit microbial growth (per IMO Biofouling Guidelines).
· Erosion Immunity: Handles 4.5 m/s sand-laden seawater (ASTM G73).
· Rapid Stock Delivery: 100+ standard sizes (OD 19.05–31.75mm) in warehouse.
