ASTM B111 C70600 Copper Nickel Alloy Low Finned Tube For Condenser and Evaporator

Brand Name:	YUHONG
Model Number:	Low Fin Tube
MOQ:	1PC
Price:	Negotiable

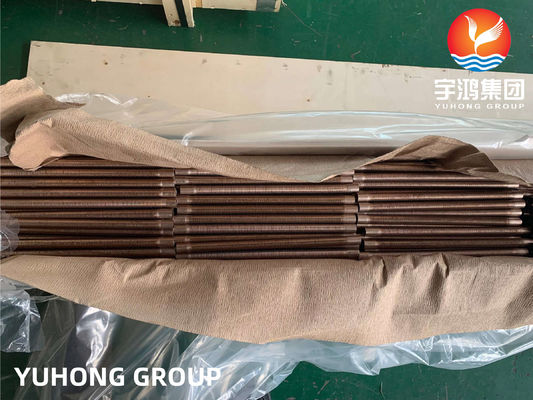

Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	L/C,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product Name:

Low Fin Tube

Base Tube Specification & Material:

ASTM B111 C70600

Fin Height:

<1.6mm

Fin Thick:

~0.3mm

Fin Pitch:

0.6mm-2mm

Base Tube OD:

10mm-38mm

Application:

Condenser, Evaporator, Heat Exchanger, Reactor

Performance Highlights:

Good Heat Transfer Efficiency, No Scaling, Easy Processing

Supply Ability:

Based on the quantity

Highlight:

Condenser C70600 Low Finned Tube

Evaporator C70600 Low Finned Tube

ASTM B111 Low Finned Tube

Product Description

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

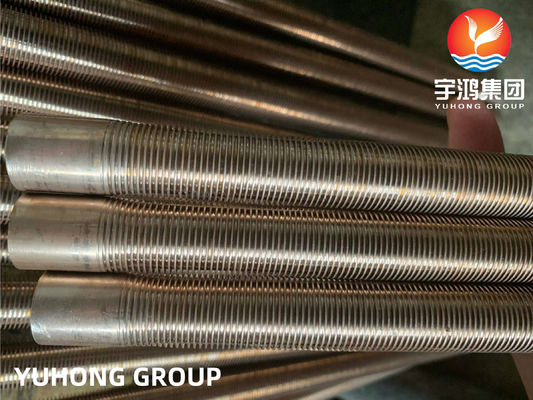

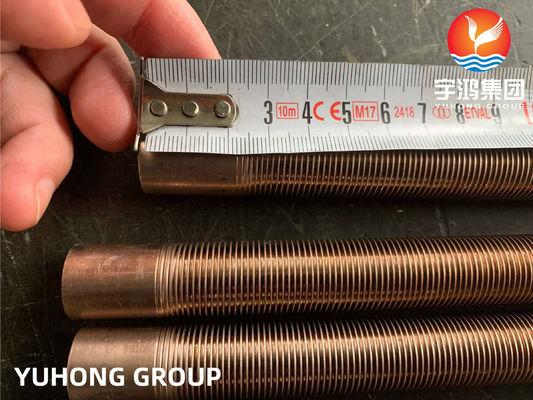

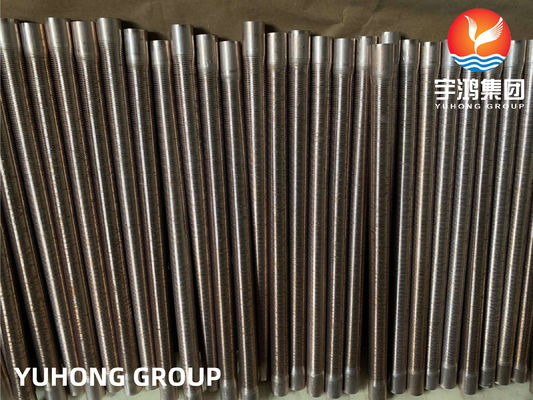

Low Finned Tube ASTM B111 C70600 Copper Nickel Alloy Tube For Condenser or Evaporator

Low thread finned tube is a kind of high efficiency heat exchange tube which is rolled to form spiral fin on its outer surface.

The strengthening effect of this type of tube is outside the tube. On the one hand, the heat transfer area is increased by the screw fin; on the other hand, when the shell side medium flows through the surface of the threaded tube, the surface screw fin has a segmentation effect on the laminar flow side layer, which reduces the thickness of the boundary layer. Moreover, the turbulence formed on the surface is stronger than that of the smooth tube, which further reduces the thickness of the boundary layer.

It is suitable for the shell side medium is relatively clean, no corrosion, no scaling, can use low thread finned tube as heat exchange element to form low thread finned tube high efficiency heat exchanger.

1.Chemical & Mechanical Properties

ASTM B111 C70600 Chemical Composition (%)
Cu	Ni	Fe	Mn	Zn	Pb	Else
≥86.5%	9.0 ~ 11.0	1.0 ~ 2.0	0.5 ~ 1.0	≤1.0	≤0.05	≤0.5

Mechanical Properties

Component

Mechanical Performance

Key Features

ASTM B111 C70600
Tube

· Tensile Strength: ≥ 310 MPa
· Yield Strength: ≥ 105 MPa (70 ksi)
· Elongation(2 inches): ≥ 30% in 50 mm
· Hardness: ≤ 100 HRB

· Excellent Corrosion Resistance

· High Thermal Conductivity & Strength

· Anti-Biofouling

· Easy Fabrication & Welding

· Long Service Life & Reliability

· 100% recyclable, meeting green manufacturing standards

2. Key Features

(1) Helical low fins increase surface area by 30-50%, significantly enhancing heat transfer coefficient (ideal for low-velocity fluids).

(2) C70600 alloy forms a protective oxide layer in seawater; fin design minimizes fouling.

(3) Cu-Ni base material + cold-formed fins provide high tensile strength (≥275 MPa) and pressure resistance.

(4) Copper ions naturally inhibit marine growth, reducing maintenance downtime.

3. Key Applications

Marine & Offshore

Marine Condensers & Central Coolers
Offshore Oil Platform Heat Exchangers

Chemical & Petrochemical

Acid Gas Coolers (H₂S/CO₂ Service)
High-Salinity Wastewater Evaporators

Energy & Power

LNG Vaporizers & Cold Energy Recovery
Geothermal Power Condensers

Environmental & New Energy

Desalination MED Plants
Fuel Cell Thermal Management

Special Industries

Nuclear Plant Auxiliary Cooling
Pharmaceutical Grade Heat Transfer
