HFW Serrated Finned Tubes ASME SA213 T22 With CS Fins For Heat Exchanger Equipment

Brand Name:	Yuhong
Model Number:	HFW Serrated Finned Tubes
MOQ:	Depend the size of finned tubes
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Finned Tube

Finned Tube Type:

HFW Serrated Finned Tubes

HFW Serrated Finned Tubes Standard:

ASME SA213

HFW Serrated Finned Tubes Material:

T22 Alloy Steel Base Tubes And CS Fins

HFW Serrated Finned Tubes Packing:

Ply-wooden Case With Iron Frame

HFW Serrated Finned Tubes Use:

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

Supply Ability:

1000 tons/month

Highlight:

heat exchanger Serrated Finned tubes

ASME Serrated Finned tubes

ASME SA213 T22 Finned tubes

Product Description

HFW Serrated Finned Tubes ASME SA213 T22 With CS Fins For Heat Exchanger Equipment

ASME SA213 / ASTM A213 specification for seamless ferritic and austenitic alloy steel boler, superheater, and heat exchanger tubes. Grade T22 is a chromium-molybdenum (Cr-Mo) alloy steel. T22 material has high-temperature performance,good creep resistance and oxidation resistance due to chromium and molybdenum content.

Chemical Composition (%) K21590

Grade	C	Mn	P	S	Si	Cr	Mo
T22	0.05-0.15	0.30-0.60	0.025	0.025	0.50	1.90-2.60	0.87-1.13

Mechanical Properties K21590

Grade	Tensile Strength,min	Yield Strength (0.2%Offset,min)
Grade	60ksi (415 MPa)	30ksi (205 MPa)
S30409	Elongation min. %	Heat Treating Temperature min.
S30409	30	1250°F [675°C]

SA213 T22 alloy steel tubes are widely applied in heat exchangers, boilers, and pressure vesselsdue to their high-temperature strength, corrosion resistance, and durability. T22 tubes are a ideal choice for industries like power plants, petrochemicals, and oil & gas.

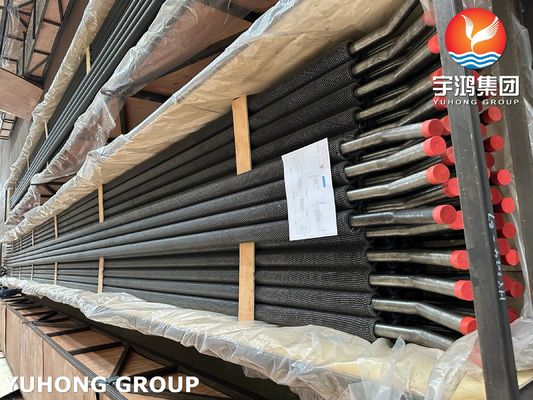

HFW Serrated Finned Tubes ASME SA213 T22 With CS Fins For Heat Exchanger Equipment 0

ASME SA213 T22 alloy steel HFW (High Frequency Welded) serrated finned tubes are designed to enhance heat transfer efficiency in high-temperature and high-pressure applications. These finned tubes are widely used in oil and gas projects or power plant projects, such as heat exchangers, boilers, air coolers, and economizers where maximizing surface area and thermal performance is critical.

SA213 T22 material provides excellent creep resistance and oxidation resistance at high temperature.Thus suitable for boilers, superheaters, and heat recovery systems in power plants and refineries.

SA213 T22 material has durability in harsh environments, chromium-molybdenum (Cr-Mo) alloy resists corrosion, scaling, and sulfur attack in aggressive flue gas conditions.Serrated fins disrupt laminar flow, minimizing ash and particulate buildup, so it's ideal for coal-fired plants and waste heat recovery.

Applications in Heat Exchanger Equipment

Economizers

Boilers & Superheaters
Waste Heat Recovery Units (WHRU)
Air-Cooled Heat Exchangers (ACHE)
HRSG (Heat Recovery Steam Generators)

Specifications

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6-10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6-2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8-30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3-25	5-30	0.8-3
	H/HH type fin tube	25-63	8-30	<200	1.5-3.5
	Serrated spiral fin tube	25-219	2-7	<38.1	0.9-2.0
	Studed fin tube	25-219	8-30	5-35	φ5-20

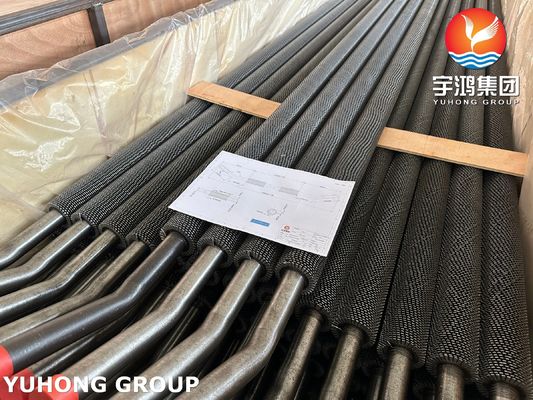

HFW Serrated Finned Tubes ASME SA213 T22 With CS Fins For Heat Exchanger Equipment 1
