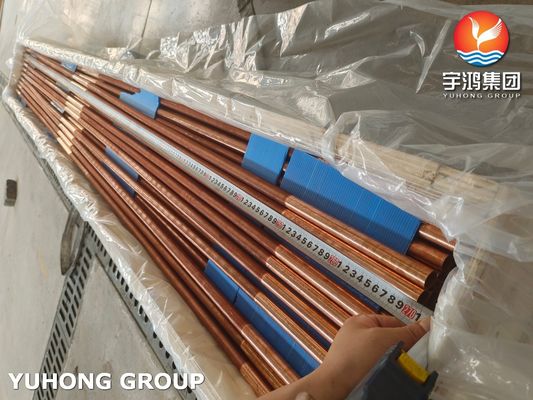

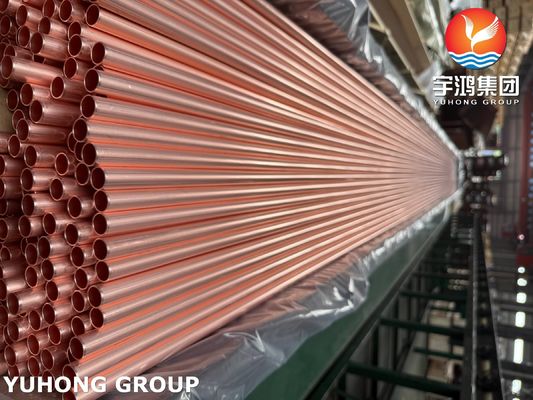

Low Fin Tubes ASTM B111 C12200 Phosphorized Copper Tube For Seawater Condensers

ASTM B111 C12200 copper tube, also known as DHP (Deoxidized High Phosphorus) copper, is commonly used in heat exchangers and condensers, especially operating in seawater environments. C12200 seamless tubes have good thermal conductivity (~390 W/m·K) for efficient heat transfer. And having ecent strength and formability for tube fabrication. Notes: soft temper (annealed) for bending, hard temper for high-pressure applications.

Chemical Composition (%) DHP Phosphorized Copper Seamless Tube

Mechanical Properties DHP Phosphorized Copper Seamless Tube

Role Of C12200 Tubes in Seawater Condensers

Seawater condensers (used in ships, desalination plants, and coastal power stations)

C12200 DHP tubes have high thermal conductivity that ensures effective condensation of steam or refrigerant.

Moderate Corrosion Resistance: C12200 tubes perform better than pure copper in saline environments due to phosphorus reducing oxide formation.

But cupronickel (C70600/C71500) and titanium outperform C12200 in harsh seawater environments.

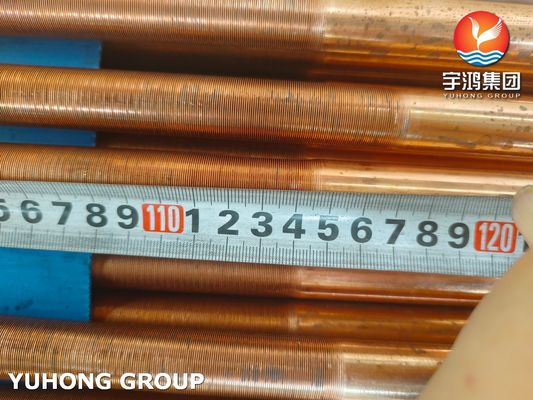

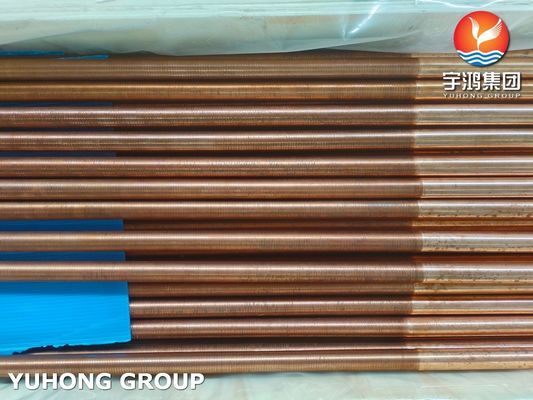

Low Fin Tubes are specialized heat exchangers designed to enhance heat transfer efficiency while maintaining a compact structure. C12200 copper low-fin tube plays a specialized role in seawater condensers, offering enhanced heat transfer efficiency compared to smooth tubes while maintaining some of the inherent benefits of phosphorus-deoxidized copper (DHP). Fin height, density, and pitch are optimized for condensation performance.

In seawater condensers, C12200 low fin tubes enhanced heat transfer, particularly helpful when seawater is on the shell side (outside the tubes) and refrigerant/steam is inside.

Application ( Not limited to the following )

HVAC & Refrigeration Systems:  Evaporators & Condensers / Heat Pumps

Power Plant Condensers: Steam Surface Condensers / Auxiliary Cooling Systems

Chemical & Process Industries: Liquid-to-Gas Heat Exchangers / Reboilers & Distillation

Marine & Offshore Applications: Seawater Coolers & Condensers / Desalination Pre-Heat Exchangers

Industrial & Manufacturing Cooling: Hydraulic Oil Coolers / Compressed Air Aftercoolers

Specifications For Various Types Of Finned Tubes

Our finned tubes include the following types,and we can make sure that fin tubes we produced with highest quality and manufacturing standards.
