Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface
  • name
  • name
  • name
  • name

Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface

Brand Name: Yuhong
Model Number: SGCC FB
MOQ: 3000 sets
Price: Negotiable
Packaging Details: Carton
Payment Terms: TT, LC
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ABS, BV, DNV, CCS, LR
Product:
Fin Tube Support --- Fin Tube Clamps / Pipe Hoop
Material:
Carbon Steel
Grade:
SGCC FB
Surface Treat:
Galvanized
Shape:
Round / Hexagonal / Octagonal
Size:
O.D. 60.3×I.D. 27×Width 30×THK.0.8 MM
Fin Type:
L / KL / G Embedded Fin Tubes, Extruded Fin Tubes
Packing:
Carton
Supply Ability:
3000 sets/day
Highlight:

Carbon Steel Fin Tube Clamps

,

FB Fin Tube Clamps

,

SGCC Fin Tube Clamps

Product Description

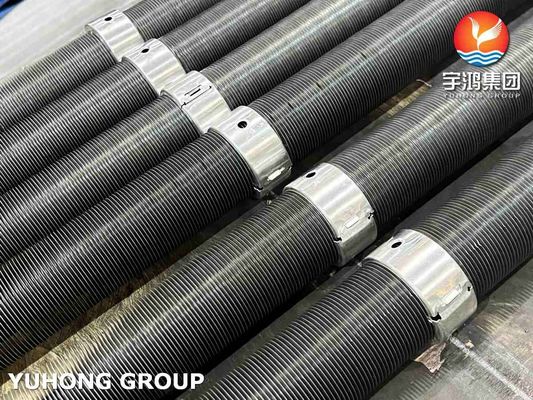

Fin Tube Clamps Carbon Steel SGCC FB Galvanized Surface​



Definition



The isolation ring fin tube clamps, also known as fin tube bands, pipe hoop or tube straps, is suitable for aluminum fin tubes, extruded fin tubes, L/LL/KL fin tubes, and most commonly for G-base fin tubes.



Fin tube clamps are mechanical fasteners used to secure finned tubes in heat exchangers, condensers, or other thermal systems. They provide structural support, prevent vibration, and ensure proper alignment of the tubes within the system.And they are also essential for maintaining the stability and performance of finned tubes in heat transfer systems. By ensuring efficient heat exchange and reducing the risk of damage, these pip hoops help prolong the lifespan of the equipment and maintain its operational efficiency.



General Material: Aluminum, Galvanized carbon steel, Stainless steel



Shape:Round, Hexagonal, Octagonal

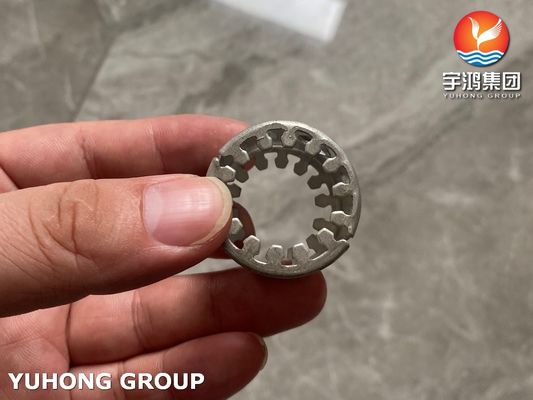

Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface 0Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface 1



Regular Size



Item Fin Tube Applicable Specifications Pipe Hoop Applicable Specifications
Base Tube O.D. and Total Fin Tube O.D. O.D.×I.D.×Width×THK.
1 Base Tube O.D. ＜18MM；Fin Tube O.D.≈30MM 33×18×30×0.8MM
2 Base Tube O.D. ＜17MM；Fin Tube O.D.≈39MM 43×17×30×0.8MM
3 Base Tube O.D. ＜27MM；Fin Tube O.D.≈51MM 56.5×27×30×0.8MM
4 Base Tube O.D. ＜27MM；Fin Tube O.D.≈53MM 58.7×27×30×0.8MM
5 Base Tube O.D. ＜27MM；Fin Tube O.D.≈55MM 60.3×27×30×0.8MM
6 Base Tube O.D. ＜27MM；Fin Tube O.D.≈57MM 63.5×27×30×0.8MM
7 Base Tube O.D. ＜32MM；Fin Tube O.D.≈59MM 65×32×30×0.8MM
8 Base Tube O.D. ＜27MM；Fin Tube O.D.≈60MM 66.5×27×30×0.8MM
9 Base Tube O.D. ＜34MM；Fin Tube O.D.≈63MM 69.5×34×30×0.8MM
10 Base Tube O.D. ＜42MM；Fin Tube O.D.≈70MM 72×42×30×0.8MM



Advantages



Secure Attachment: Ensures tubes remain firmly in place, preventing movement or misalignment.


Vibration Reduction: Helps minimize wear and tear caused by vibrations, extending the lifespan of the system.


Easy Installation: Many clamps are designed for quick and straightforward installation, reducing downtime during maintenance or assembly.

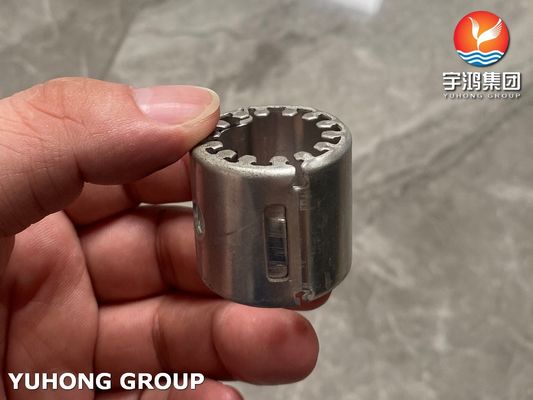

Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface 2



Installation Considerations



Proper sizing is critical to ensure a tight fit without damaging the fins or tubes.



Clamps should be installed at regular intervals along the length of the tube to provide uniform support.



In high-temperature or corrosive environments, material selection is crucial to ensure durability and performance.



Application



Fin tube clamps are widely used in industries such as power generation, HVAC, refrigeration, and chemical processing. They are essential in air-cooled heat exchangers, condensers, and other systems where finned tubes are used.

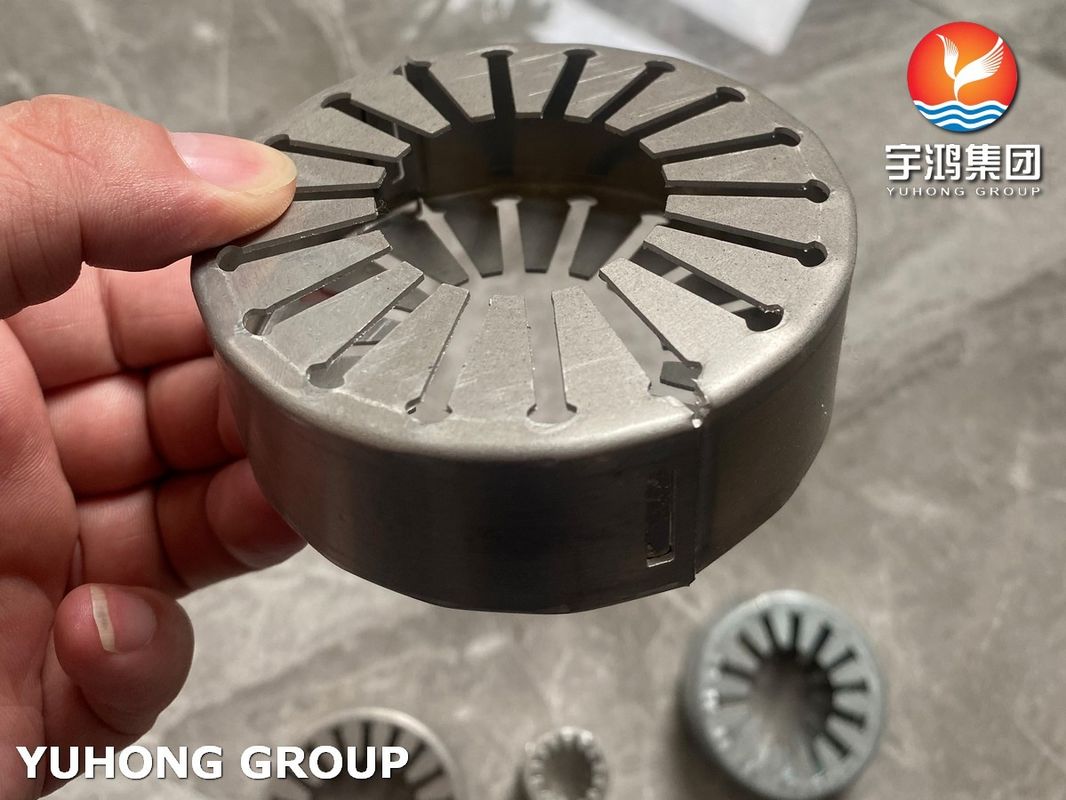

Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface 3
