| Brand Name: | YUHONG |
| Model Number: | ASTM A192 |
| MOQ: | 1PC |
| Price: | NEGITABLE |
| Payment Terms: | T/T,LC |
| Supply Ability: | 100 TONS PER MONTH |

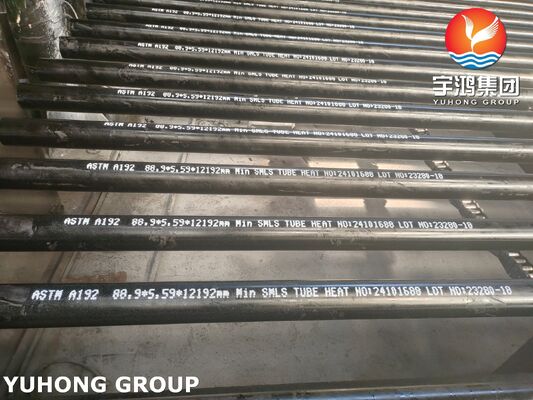

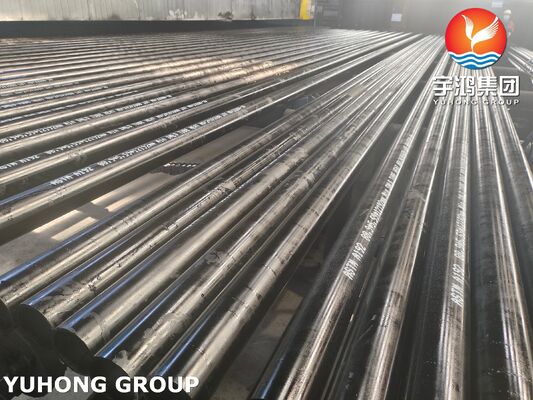

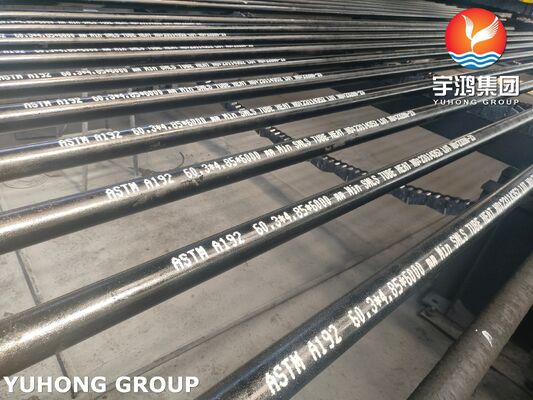

ASTM A192 Seamless Carbon Steel Boiler Tube - High-Pressure Service for Boilers & Superheaters
YUHONG Group, with over 35 years of industrial expertise and a global presence spanning 85 countries, specializes in manufacturing high-performance steel tubing for critical applications. Our ASTM A192 Seamless Carbon Steel Boiler Tubes are engineered to meet rigorous international standards for high-pressure service in boiler and superheater systems. We combine advanced manufacturing techniques with stringent quality control to deliver tubes that ensure reliability, safety, and optimal performance in demanding thermal environments. Trust YUHONG for quality-certified solutions backed by our technical expertise and commitment to excellence.
The Chemical Composition of ASTM A192
| Element | Requirement (Weight %) |
| Carbon (C) | 0.06 – 0.18 |
| Manganese (Mn) | 0.27 – 0.63 |
| Phosphorus (P), max | 0.035 |
| Sulfur (S), max | 0.035 |
| Silicon (Si), max | 0.25 |
The Mechanical Properties of ASTM A192
| Property | Requirement |
| Tensile Strength, min | 325 MPa (47,000 psi) |
| Yield Strength, min | 180 MPa (26,000 psi) |
The Standard Tests for ASTM A192 Tubes
| Test Type | Standard Requirement |
| Flattening Test | The specimen shall be flattened without cracking until the distance between the plates is three-fourths of the outside diameter of the tube. |
| Flaring Test | The specimen shall be flared without cracking until the outside diameter has increased by 20%. |
| Hardness Test | The Brinell or Rockwell hardness test shall be made on two tubes from each lot. |
| Hydrostatic Test | Each tube shall be subjected to the hydrostatic test (or NDT as specified). |
Key Product Advantages of ASTM A192
